Headland Spreading ONLY TO THE BORDER - THANKS!
Our headland spreading is based on the Off-centre spreading system. The rotation direction of the spreading discs is away from each other creating two in-dividual spread patterns . . one a pattern towards the headland falling steeply at the border with a sharp cut-off and the other a full width pattern into the field area.
The back side of the spreading vanes are used for headland spreading and designed to produce half the spread width to the right side of the spreader.
Forward directed spread pattern when head-land spreading.
The forward directed spread pattern on the headland side, makes sure that all the field is correctly fertilised, including in the corners. The amount of fertiliser at the headland border can be freely adjusted by changing the Pto revs to meet individual requirements.
Left spread pattern 110 overlapping

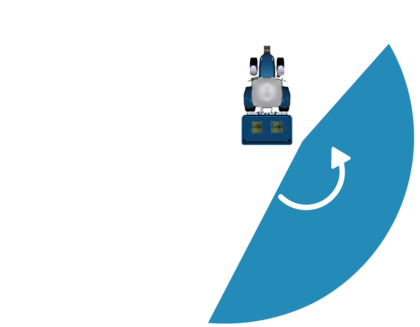

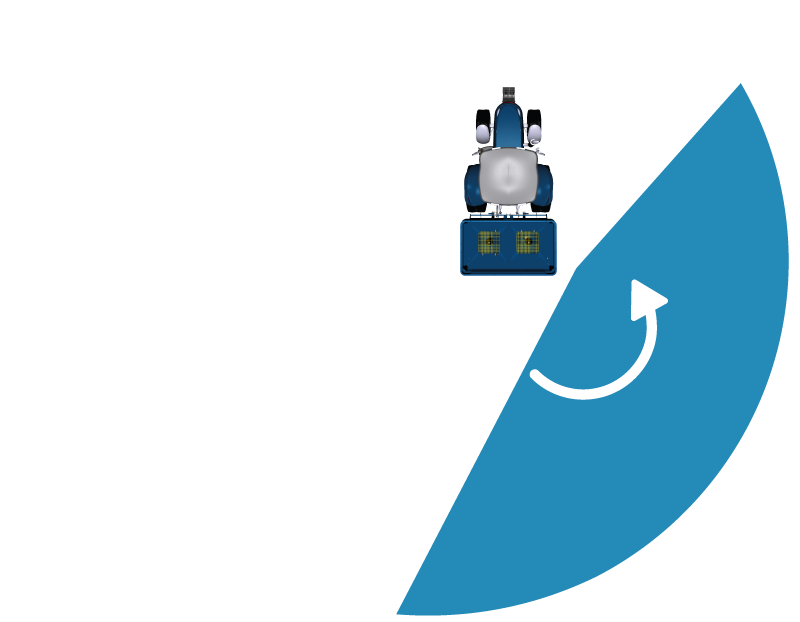

Right spread pattern 110 overlapping

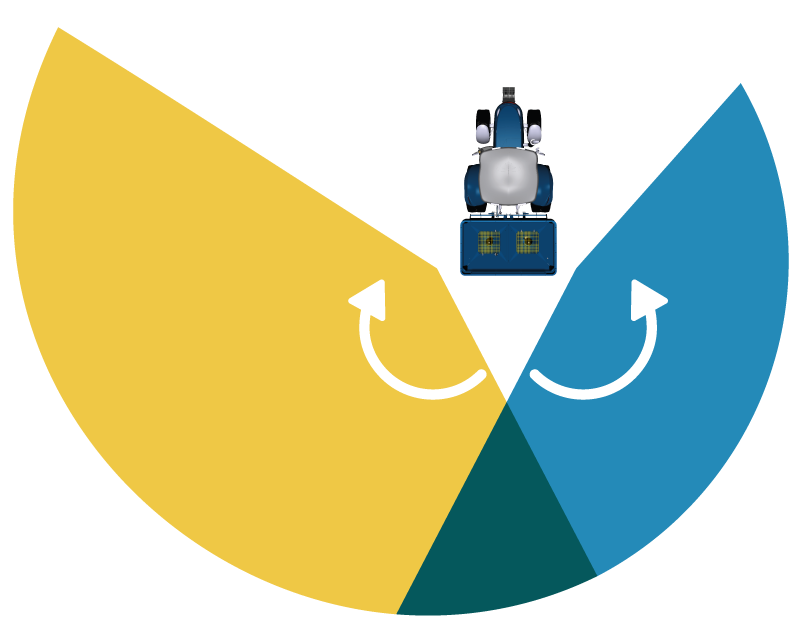

Right + Left spread pattern
