Specifications

M60W plus

Working width
10-42 m
Capacity in liters
0 - 5550 L
Capacity in kilo
0 - 6000 kg

Control unit

CALIBRATOR ZURF
Not available
CALIBRATOR ICON
Not available
Isobus Controller
Depending on model
NAVI App
Depending on model , Extra
Hydraulic
Not available
Cable
Not available
Manual
Not available
CALIBRATOR TOTZ
Depending on model

Quantity control

Weighing system
Standard
Manual calibration
Not available
Fully automatic calibration
Standard
Intelligent Control
Standard
Speed relation
Standard

Control of spread pattern

Section control dynamic
Extra , Requires specific configuration
Section control standard
Requires specific configuration
Dual Dynamic
Requires specific configuration
External GPS
Extra

Integrated headland spreading

To border
Standard
From border
Extra
To and from border

-
Dynamic Headland
Standard

Various optional equipment

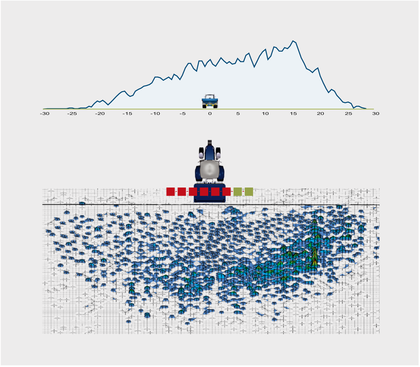

Section Control Dynamic
Dynamic section control.

A useful option that individually adjusts and adapts the spreading image on the right and left sides in relation to the shape and contour of the field. The number of sections is displayed as 8 main sections with each 5 subsections on the terminal. Section closure takes place in sliding movements and therefore the number of sections is infinite. The smoothing and sliding transitions ensure optimum and uniform overlap of fertiliser on headland and in wedges.

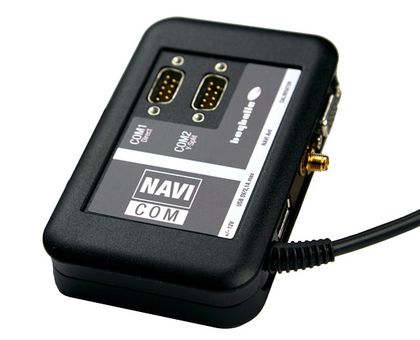

NAVI Com
NAVI Com communication module for Bluetooth connection between CALIBRATOR ZURF and Android tablet.

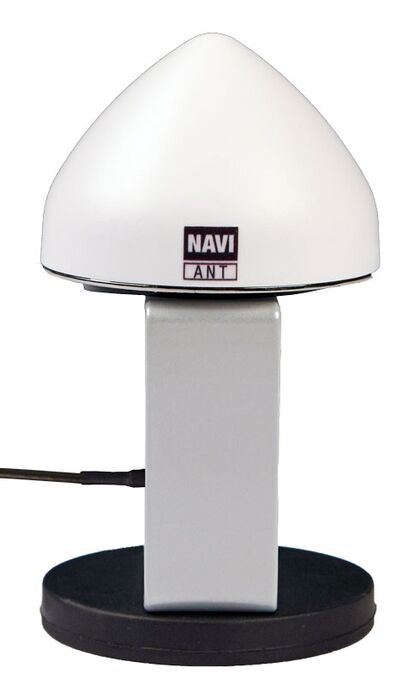

NAVI Ant
GPS antenna (NAVI Ant) for NAVI Com.

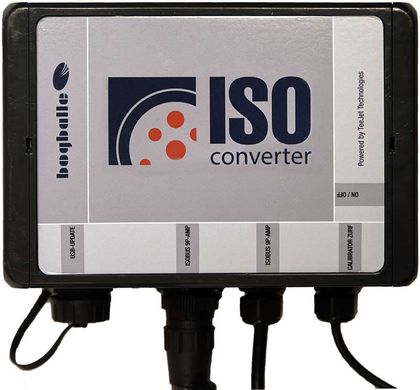

ISO Converter
ISO Converter for connection between CALIBRATOR ZURF and ISOBUS

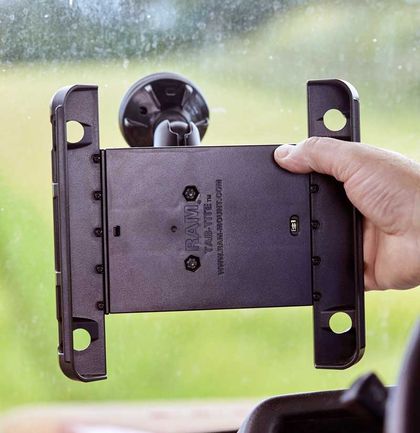

RAM tablet mount
RAM tablet mount for the tractor

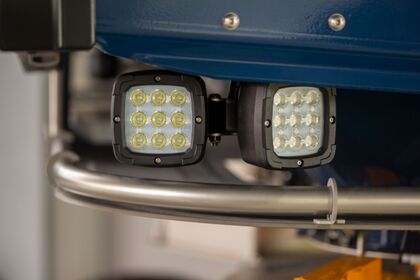

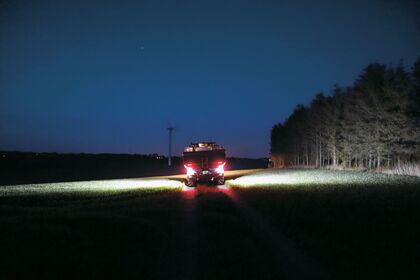

LED Work Lights
LED Work Lights

Set consisting of four LED work lights with 5.200 Lumen. The position of the lamps between the spreading frame and the spreading discs makes the fertiliser grains to reflect the light cone. The lamps are adjustable and set to lighten both normal and border spreading at the same time.

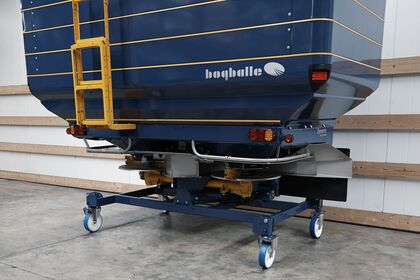

Parking frame
Parking frame with wheels (max. 1200 kg)
Hopper Cover
Foldable hopper cover
Hydraulic remote control for hopper cover

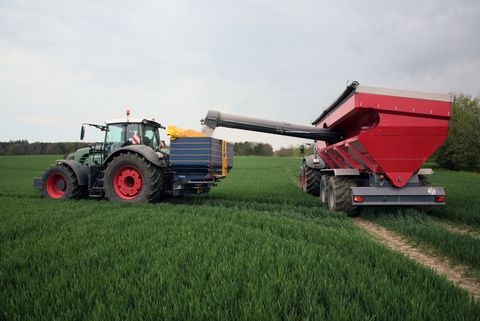

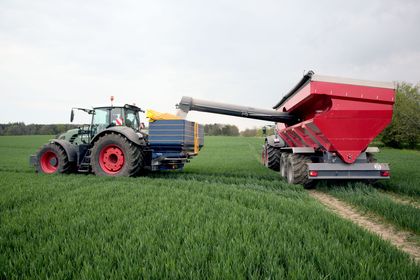

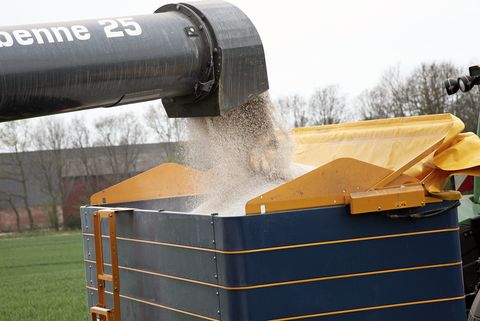

Hydraulic remote control to open and close the hopper cover from the cabin. A very useful solution for large spreaders or as in the photo above, where it is filled directly from a chaser bin.

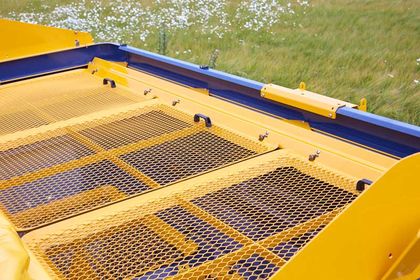

Sieves, top mounted
Top-mounted sieves - covering the full hopper area.

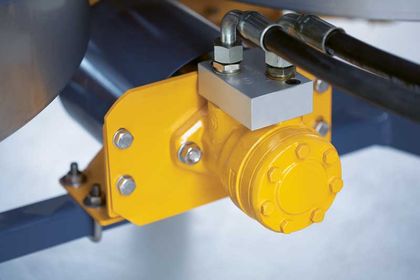

Hydraulic motor
Hydraulic motor.
Spreading discs driven by hydraulic.
Reflector board (L-line)
Reflector board, set consisting of 1+2 (rear + sides).

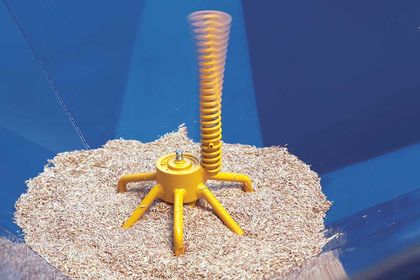

Agitator for grass seed
Agitator for spreading grass seed.

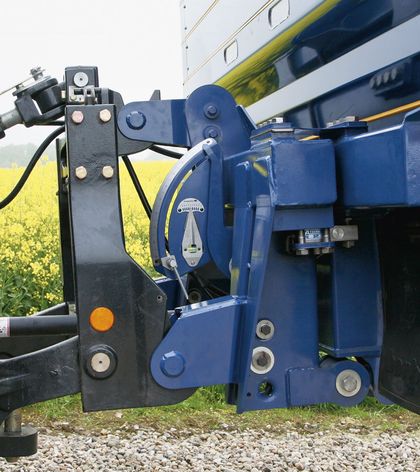

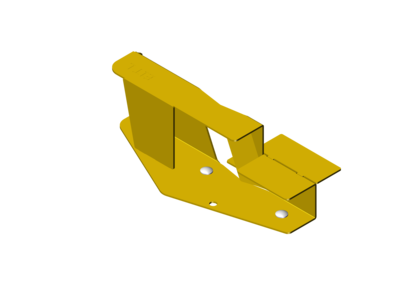

Adapter for mounting in cat. 4N lift
Adapter for mounting in cat. 4N lift

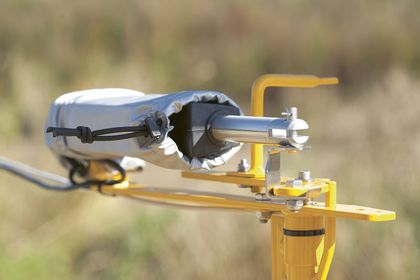

Electrical remote of headland spreading from cabin

Electric remote to border
Electric remote to border via CALIBRATOR and ISOBUS Controller
Electric remote from border
Electrical remote control from border via CALIBRATOR and ISOBUS Controller. The system allows for spreading with one disc directly from the border and into the field. It gives a sharp limited application of fertiliser to the border.

Also available in manual or cable-controlled variant.
Electric remote to/from border

Electrical remote to/from border via CALIBRATOR or ISOBUS Controller
